Autoterm 2D-12

SB.4465



Parameter Code

Version

PLANAR–2D–12

PLANAR–2D–24

Nominal Supply Voltage, V

12

24



Fuel Type

Diesel Oil



Heating Efficiency:



1,8

max, kW,

min, kW,

0,8

Heated Air Volume:



75

Max , m3 /h

Min, m3 /h

34

Fuel Consumption at:



0.24 (0.06)

Max power, l/h (gal/h)

Min power, l/h (gal/h)

0.1 (0.03)

Heater power consumption, W



29



29

Doesn’t exceed while heating

mode

Max, W

Min, W

10

10

Start/Stop Mode

Manual

Maximum Weight, kg (lb)

3

More details

421,49 €

More info

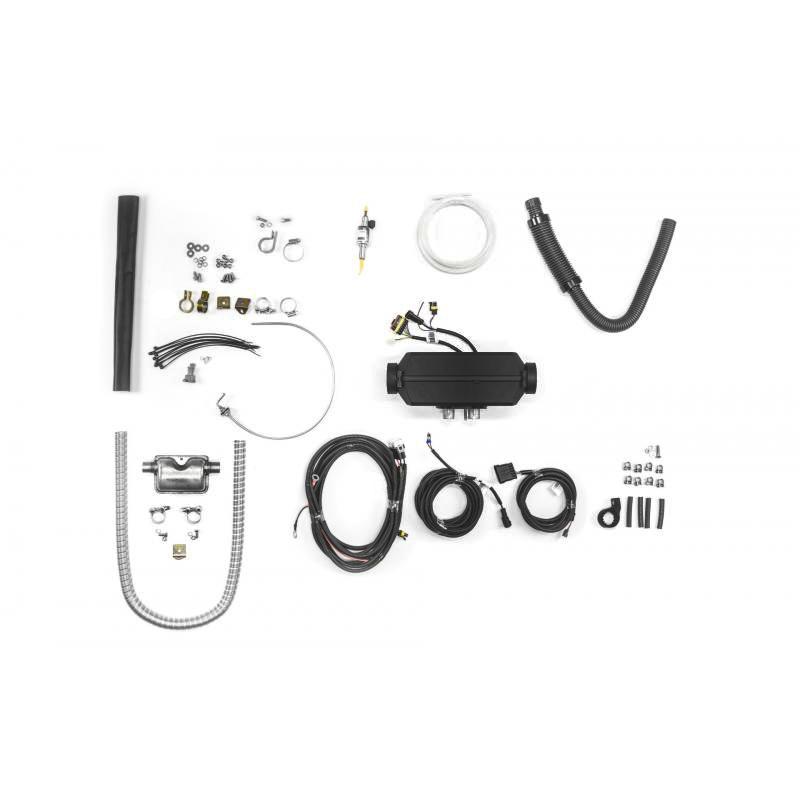

The heating device is independent heating unit that consists of:

-heater 2kW(MOUNTAIN KIT);
-silent fuel pump;
-exhaust pipe Ø24mm (1 meter);
-isolation (0,45 meter);
-exhaust silencer;
-cable for pump;
-cabel for control panel (1,8 meter)
-fuel standpipe;
-cable for battery(6,5 meter ).

Planar 2D is the model with the smallest dimensions in the Planar range, and this allows it to be installed in even small cars. In terms of size and shape, Planar 2 can be compared to heaters of other brands, and because it has standard attachment sites, it can replace heaters of other brands if their repair is too costly.

Planar 2D is produced in two models – 12 and 24 Volt. The installation kit which is part of the package contains everything you need, allowing you to install the heater in almost any road vehicle.

Accessories

Download

2D_ECE122_Sertificate

Download (188.25k)

Certificate 10R

Download (232.66k)
