View larger

Model SB.4820

		Comfort Control EN 74,38 €
		Control panel PU-27 57,85 €

Characteristic	Model
	Binar 5B-Compact with Bosch pump	Binar 5D-Compact with Bosch pump
Heat productivity, kW	5±0,5
Nominal supply voltage, V	12
Acceptable deviation, V	9.5…16
Fuel	Peirol	Diesel
Fuel consumption, l / h	0,7	0,6
Power consumption with the pump, max, W	45
Power consumption on startbmode (100 s), W	65
Maximum liquid heating temperature, Cº	+85
Cabim heater fan switching at liquid temperature	+40
Start mode	Manual or automatic
Time of one working cycle, min	20…120
Pre-heater mass in full configuration, kg, max	2,5

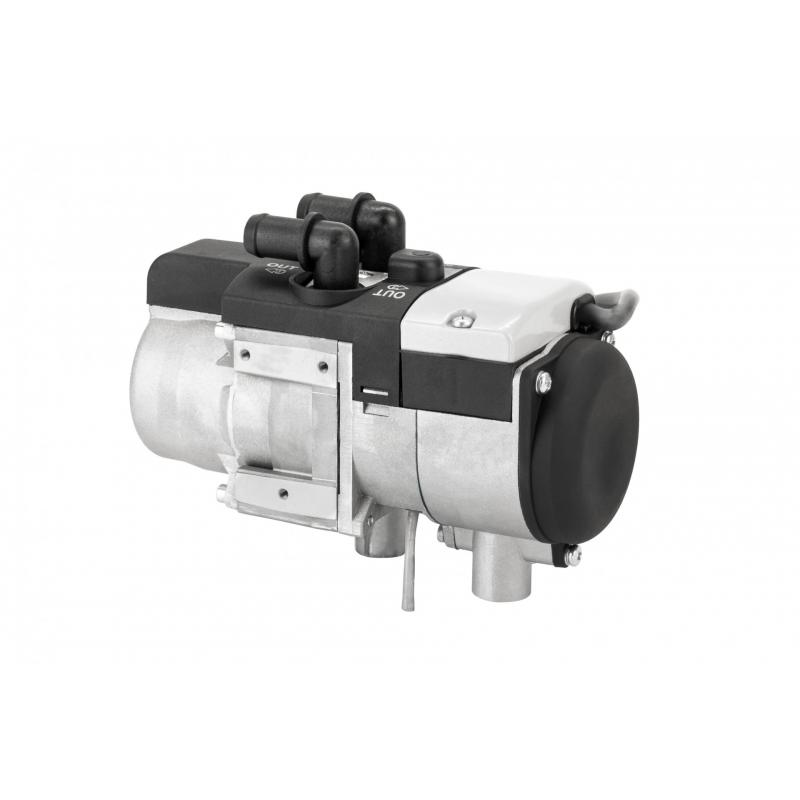

The heating unit Binar 5 for pre-heating of engines before their starting was developed for installation in passenger cars and designed for:

heating of engines for safe putting them into operation at low temperatures;
heating of cabins and front glass/windshield (for deicing) when the engine is stopped;
additional heating of the engine and cabin when the engine is running during strong frosts.

Warm water heating can be controlled using a control desk installed on the dashboard or remotely using a GSM modem and telephone ringing.
