Air-heater Autoterm 4D-24

SB.4500

Parameter Code

Version

PLANAR 44D–24

PLANAR 44D12

Nominal Supply Voltage, V

24

12

Fuel Type

Diesel Oil



Heating Efficiency:

max, kW,

min, kW,



4

1

Heated Air Volume:

Max , m3 /h

Min, m3 /h



120

70

Fuel Consumption at:

Max power, l/h

Min power, l/h



0.51

0.12

Start/Stop Mode

Manual

Maximum Weight, kg

8

Heater power consumption, W

Doesn’t exceed while heating mode

Max, W

Min, W







58

10







62

10

More details

479,34 €

More info

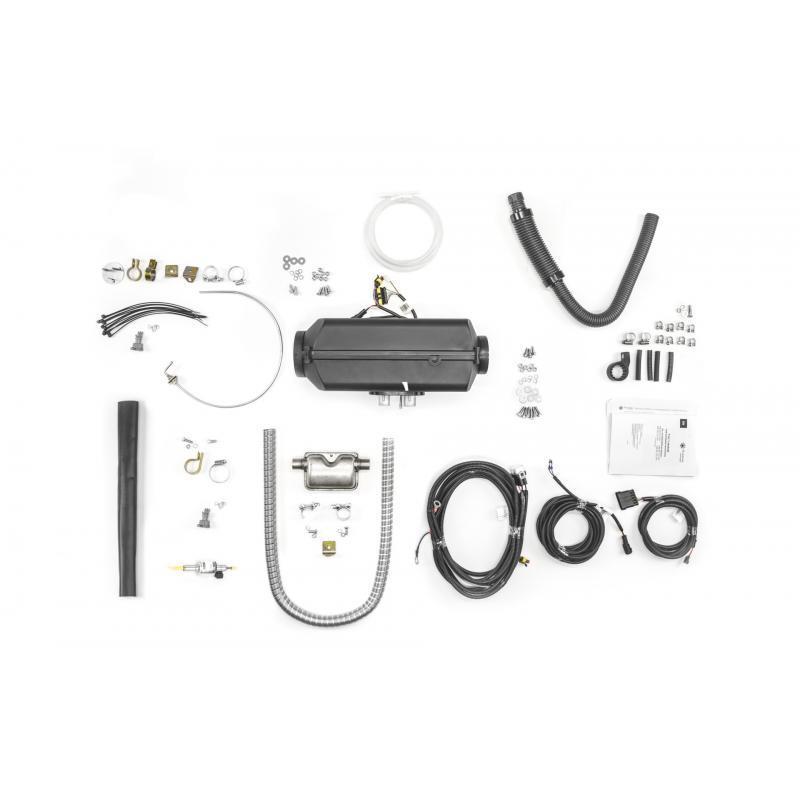

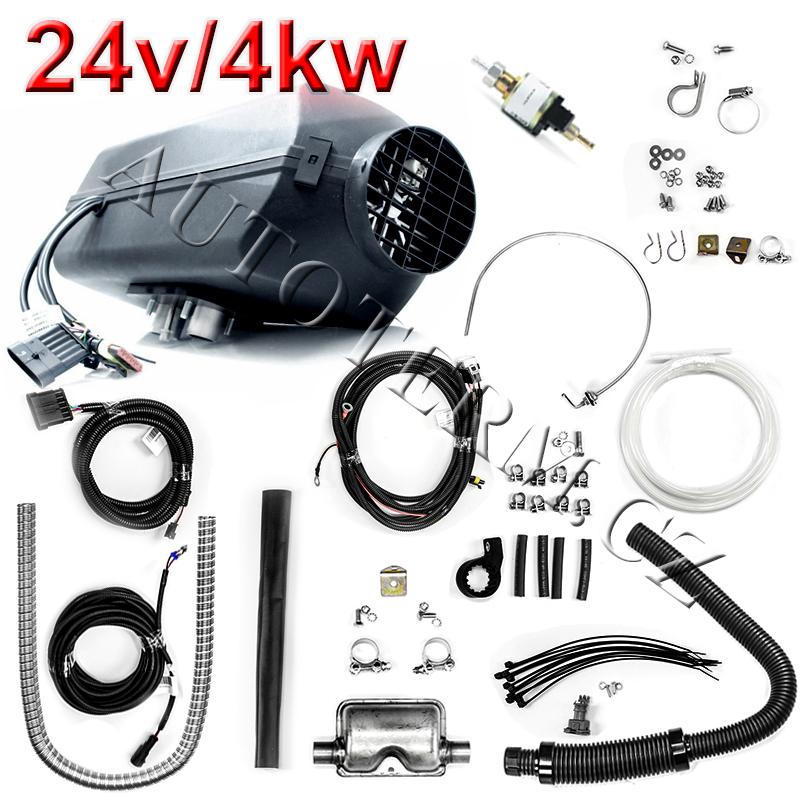

The heating device is independent heating unit that consists of:

-heater 4kW (MOUNTAIN KIT);
-silent fuel pump;
-exhaust pipe Ø24mm (1 meter);
-isolation (0,45 meter);
-exhaust silencer;
-cable for pump;
-cabel for control panel (1,8 meter)
-cable for battery(6,5 meter )
-fuel standpipe;
-T-fuel tube;
-tank 7l.

This model provides maximum comfort in cabins and sleeping zones of trucks, incl. heavy trucks operating under extreme climatic conditions, in minibus and camper interiors, in cabins of special vehicles and cabins of boats operated under mild climatic conditions. It is optimal heater for heating of cargo spaces in vans and medium-size trailers, yachts, small buses, rescue service cars and other transport means used under extreme conditions or when fast heating is required.
